Main cable / cable harness 13-pole with spiral

STEMA_Spiralkabel_T3610380_7312 Anschlussplan 13pol.

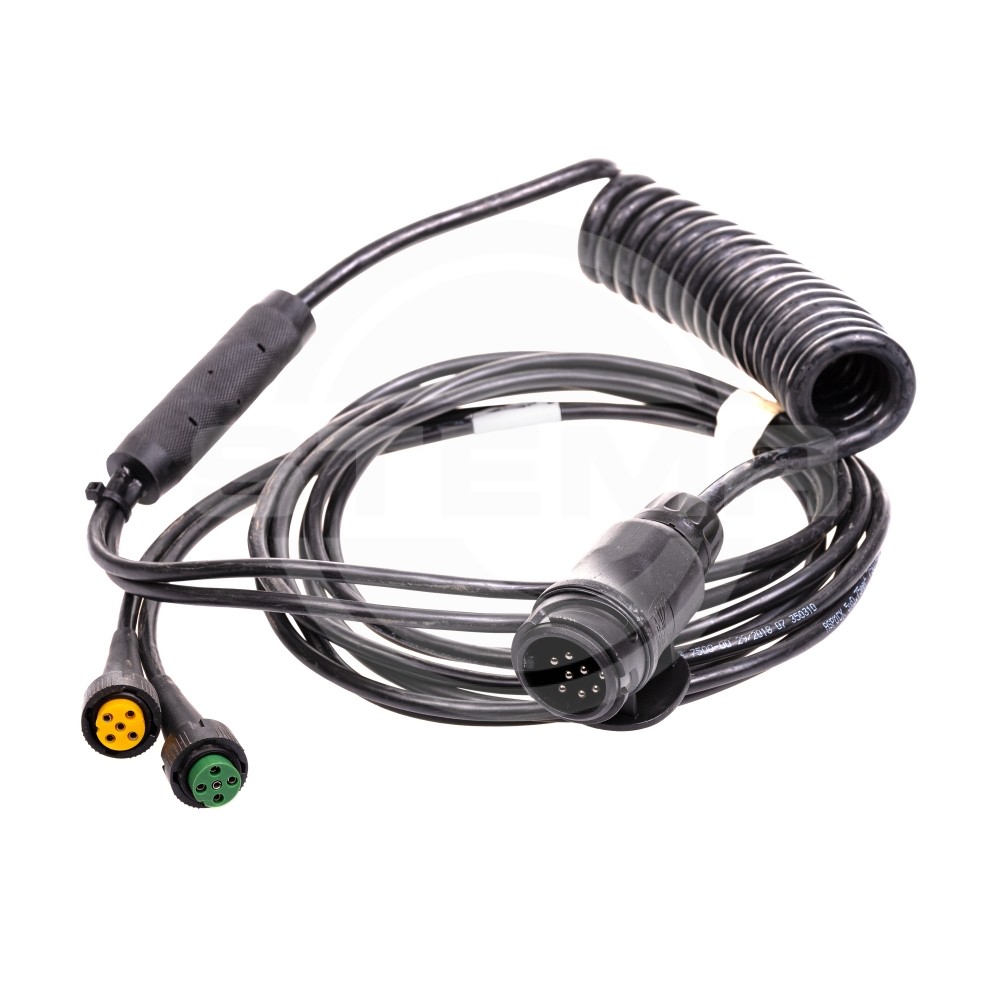

Sample image

The main cable is equipped with a black 13-pole coupling socket. Due to the spiral-shaped cable, it is no longer necessary to thread it into the V-drawbar. From a separate junction, two cable strands with 5-pole bayonet connection (left + right) go directly back to the rear lights. The cable length varies according to trailer model / size.

  • with 13-pole coupling socket
  • spiral-shaped cable
  • Cable harness for back lights with 5-pole bayonet connection
Name Price incl. VAT
Main cable 3.5 m with spiral includes 13-pole coupling socket
Main cable 3.5 m with spiral includes 13-pole coupling socket
  • art.nr. T3610380
  • for internal box dimensions 201 x 108 cm and 210 x 128 cm
  • for internal box dimensions: 201 × 108 cm
  • for external box dimension: 207 × 114 cm

€68.30 €54.64

Subject to errors and changes! • plus shipping costs, delivery is done with DPD / Spedition Emons / more informations »
