Lattice extension / leaf grate for zinc side wall (low loader)

Name: Lattice extension
Brand: STEMA Metalleichtbau GmbH
Price: 628.8 EUR
Availability: InStock

Sample image

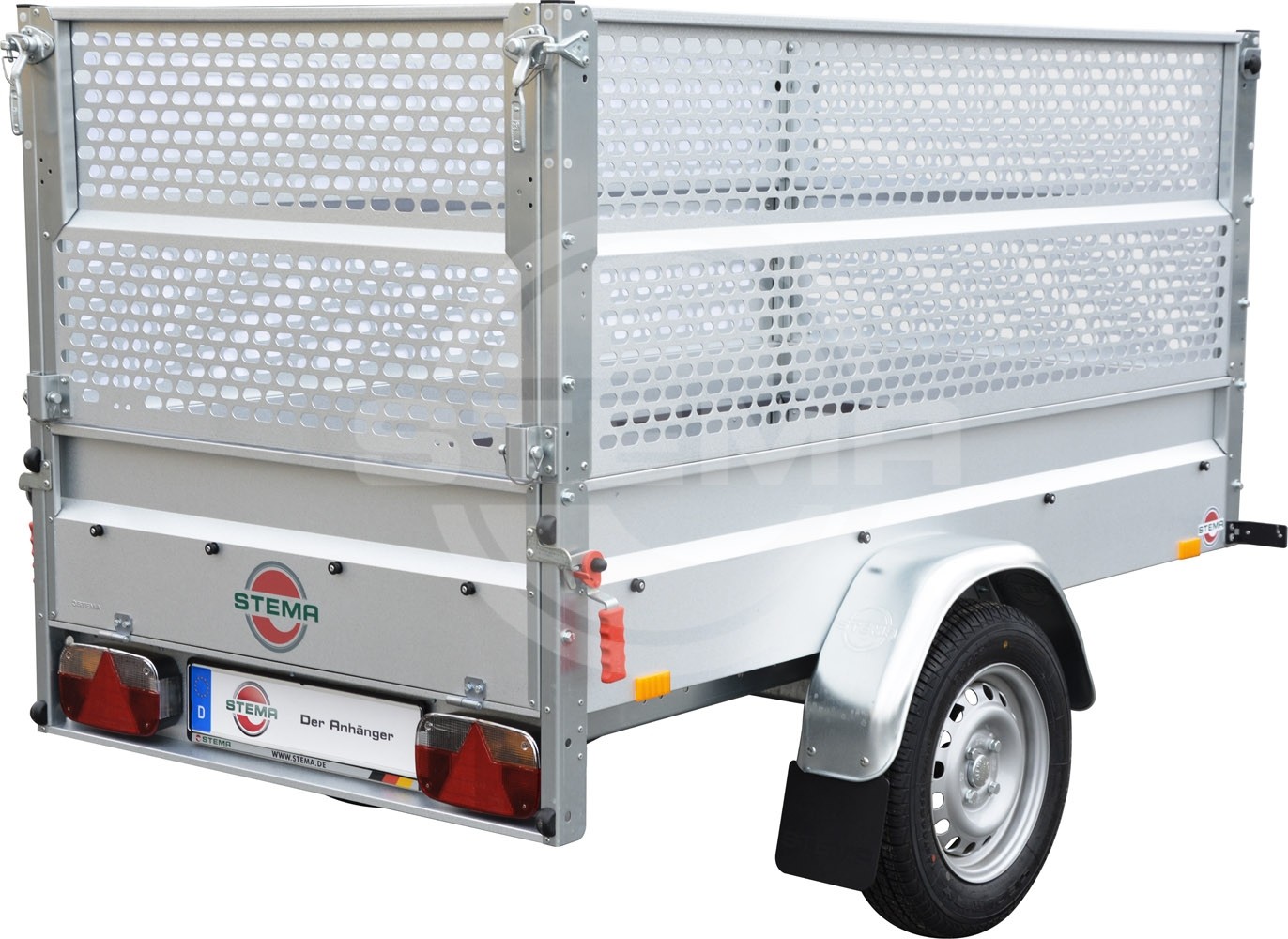

The 4-part lattice extension made of perforated sheet metal is ideal for transporting grass, straw, green waste and many other materials. The front grate is foldable with a length of 210 cm and up. The 66 cm height is measured from the to edge of the side wall to the top edge of the lattice extension.

The folding and detachable rear wall makes it easier to load the car trailer. The mesh size is 40 x 20 cm. All necessary standard parts are included in the delivery.

made of perforate sheet metal
front grate foldable from lengths of 210 cm and up
4-part
66 cm height
mesh size 40 x 20 mm
incl. mounting material

Downloads:

Gitteraufsatz / Laubgitter für Zink-Bordwand (Tieflader)

Name Price incl. VAT

Lattice extension

art.nr. ZT17848
Lattice extension / leaf grate for zinc side wall (low loader)
for internal box dimensions: 154 × 108 cm
for external box dimension: 160 × 114 cm
Article dimensions: 66 cm (Height)
Weight: 49 kg

€628.80

Lattice extension

art.nr. ZT17849
Lattice extension / leaf grate for zinc side wall (low loader)
for internal box dimensions: 201 × 108 cm
for external box dimension: 207 × 114 cm
Article dimensions: 66 cm (Height)
Weight: 54 kg

Suitable trailers

€655.00

Box trailers	Total weight	Platform dimensions	art.nr.
FT 7.5-20-10.1B	750 kg	201 × 108 cm	23618
FT 7.5-20-10.1B with metal lid	750 kg	201 × 108 cm	23618.002
FT 7.5-20-10.1B with side wall extension and metal lid	750 kg	201 × 108 cm	23618.001
FT 7.5-20-10.1B with gray cover and 80 cm bows	750 kg	201 × 108 cm	TL01043
FT 8.5-20-10.1B	750 kg	201 × 108 cm	23634.001
FT 7.5-20-10.1B	750 kg	201 × 108 cm	23656
FT 7.5G-20-10.1B with metal lid	750 kg	201 × 108 cm	23634.002
FT 7.5G-20-10.1B with side wall extension and metal lid	750 kg	201 × 108 cm	23634.003
FT 7.5-20-10.1A Aluminium side walls	750 kg	201 × 108 cm	23700.002
More
FT 7.5-20-10.1A Aluminium side walls	750 kg	201 × 108 cm	23701
FT 7.5-20-10.1B with gray cover and 80 cm bows	750 kg	201 × 108 cm	TL01042
FT 8.5-20-10.1B with metal lid	850 kg	201 × 108 cm	23635.002
FT 8.5-20-10.1B gebremst	850 kg	201 × 108 cm	23635.001
FT 8.5-20-10.1B with side wall extension and metal lid	850 kg	201 × 108 cm	23635.003
FT 8.5-20-10.1A Aluminium side walls	850 kg	201 × 108 cm	23705.002
FT 8.5-20-10.1B gebremst, mit Plane und Spriegel 80cm grau, Abstellstützen, DS-XL	850 kg	201 × 108 cm	TL01070
FT 8.5-20-10.1B	1000 kg	201 × 108 cm	23659
FT 8.5-20-10.1B Gitteraufsatz, Abstellstützen (beigelegt)	1000 kg	201 × 108 cm	TL01080

Lattice extension with red fasteners (unpowdered)

art.nr. ZT00434
Folding front wall for Systema “light”-low loader, does not fit WOM STS 02
for internal box dimensions: 251 × 128 cm
for external box dimension: 257 × 134 cm
Article dimensions: 66 cm (Height)
Weight: 95.7 kg

Suitable trailers

€754.70

Box trailers	Total weight	Platform dimensions	art.nr.
Basic STL 7.5-25-13.1 ungebremst	750 kg	251 × 128 cm	24012
STL 1300 O2 13-25-13.1	1300 kg	251 × 128 cm	24111.002
STL 1300 O2 13-25-13.1	1300 kg	251 × 128 cm	24111.002.7016

Lattice extension with angle lever fasteners

art.nr. ZT00435
Folding front wall, for SySTEMA Low loader, does not fit the WOM STS 02
for internal box dimensions: 251 × 128 cm
for external box dimension: 257 × 134 cm
Article dimensions: 66 cm (Height)
Weight: 95.9 kg

Suitable trailers

€800.80

Box trailers
SySTEMA	Total weight	Platform dimensions	art.nr.
STP O1 7.5-25-13.1 SySTEMA low loader single axle, unbraked	750 kg	251 × 128 cm	24220
ST O1 7.5-25-13.1 SySTEMA low loader single axle, unbraked	750 kg	251 × 128 cm	24220.001
STP O1 7.5-25-13.2 SySTEMA low loader tandem axle, unbraked	750 kg	251 × 128 cm	24211
ST O1 7.5-25-13.2 SySTEMA low loader tandem axle, unbraked	750 kg	251 × 128 cm	24211.001
ST O2 8.5-25-13.1 SySTEMA Low loader single axle, braked	850 kg	251 × 128 cm	24212.001
STP O2 8.5-25-13.1 SySTEMA Low loader single axle, braked	850 kg	251 × 128 cm	24212
STP O2 10-25-13.1 SySTEMA Low loader single axle, braked	1000 kg	251 × 128 cm	24221
ST O2 10-25-13.1 SySTEMA Low loader single axle, braked	1000 kg	251 × 128 cm	24221.004
ST O2 13-25-13.1 SySTEMA Low loader single axle, braked	1300 kg	251 × 128 cm	24223.002
More
STP O2 13-25-13.1 SySTEMA Low loader single axle, braked	1300 kg	251 × 128 cm	24223
STP O2 15-25-13.1 SySTEMA Low loader single axle, braked	1500 kg	251 × 128 cm	24225
ST O2 15-25-13.1 SySTEMA Low loader single axle, braked	1500 kg	251 × 128 cm	24225.001
ST O2 15-25-13.2 SySTEMA low loader tandem axle, braked	1500 kg	251 × 128 cm	24224.001
STP O2 15-25-13.2 SySTEMA low loader tandem axle, braked	1500 kg	251 × 128 cm	24224
STP O2 20-25-13.2 SySTEMA low loader tandem axle, braked	2000 kg	251 × 128 cm	24222
ST O2 20-25-13.2 SySTEMA low loader tandem axle, braked	2000 kg	251 × 128 cm	24222.001
STL 1300 O2 13-25-13.1 with gray cover and 100 cm roof bows	1300 kg	251 × 128 cm	TL03502
STL 1300 13-25-13 with gray cover and 150 cm frame	1300 kg	251 × 128 cm	TL03505
STL 1300 O2 13-25-13.1 mit Metalldeckel 80 mm hoch	1300 kg	251 × 128 cm	24114.051
STL 1300 O2 13-25-13.1 mit Plane schwarz und Spriegel 100 cm	1300 kg	251 × 128 cm	TL03513
STL 1300 O2 13-25-13.1 with gray cover and 100 cm roof bows	1300 kg	251 × 128 cm	TL03501

Lattice extension

art.nr. ZT00546, ZT00544
Lattice extension / leaf grate for zinc side wall (low loader)
for internal box dimensions: 210 × 128 cm
for external box dimension: 216 × 134 cm
Article dimensions: 66 cm (Height)
Weight: 88 kg

Suitable trailers

€800.80

SySTEMA	Total weight	Platform dimensions	art.nr.
STP O1 7.5-21-13.1 SySTEMA low loader single axle, unbraked	750 kg	210 × 128 cm	24203
ST O1 7.5-21-13.1 SySTEMA low loader single axle, unbraked	750 kg	210 × 128 cm	24203.001
STP O2 8.5-21-13.1 SySTEMA Low loader single axle, braked	850 kg	210 × 128 cm	24204
ST O2 8.5-21-13.1 SySTEMA Low loader single axle, braked	850 kg	210 × 128 cm	24204.002
STP O2 10-21-13.1 SySTEMA Low loader single axle, braked	1000 kg	210 × 128 cm	24205
ST O2 10-21-13.1 SySTEMA Low loader single axle, braked	1000 kg	210 × 128 cm	24205.001
STP O2 13-21-13.1 SySTEMA Low loader single axle, braked	1300 kg	210 × 128 cm	24202
ST O2 13-21-13.1 SySTEMA Low loader single axle, braked	1300 kg	210 × 128 cm	24202.001

Lattice extension

art.nr. ZT00597
Folding front wall, for SySTEMA low loader
for internal box dimensions: 210 × 153 cm
for external box dimension: 216 × 159 cm
Article dimensions: 66 cm (Height)
Weight: 89 kg

Suitable trailers

€811.50

SySTEMA	Total weight	Platform dimensions	art.nr.
ST O1 7.5-21-15.1 SySTEMA low loader single axle, unbraked	750 kg	210 × 153 cm	24206.001
STP O1 7.5-21-15.1 SySTEMA low loader single axle, unbraked	750 kg	210 × 153 cm	24206
STP O2 8.5-21-15.1 SySTEMA Low loader single axle, braked	850 kg	210 × 153 cm	24207
ST O2 8.5-21-15.1 SySTEMA Low loader single axle, braked	850 kg	210 × 153 cm	24207.001
ST O2 10-21-15.1 SySTEMA Low loader single axle, braked	1000 kg	210 × 153 cm	24208.002
STP O2 10-21-13.1 SySTEMA Low loader single axle, braked	1000 kg	210 × 153 cm	24208
ST O2 13-21-15.1 SySTEMA Low loader single axle, braked	1300 kg	210 × 153 cm	24209.001
STP O2 13-21-15.1 SySTEMA Low loader single axle, braked	1300 kg	210 × 153 cm	24209

Lattice extension

art.nr. ZT00592
Folding front wall, for SySTEMA low loader
for internal box dimensions: 251 × 153 cm
for external box dimension: 257 × 159 cm
Article dimensions: 66 cm (Height)
Weight: 98 kg

Suitable trailers

€864.90

Box trailers
SySTEMA	Total weight	Platform dimensions	art.nr.
ST O1 7.5-25-15.1 SySTEMA low loader single axle, unbraked	750 kg	251 × 153 cm	24230.001
STP O1 7.5-25-15.1 SySTEMA low loader single axle, unbraked	750 kg	251 × 153 cm	24230
STP O2 10-25-15.1 SySTEMA Low loader single axle, braked	1000 kg	251 × 153 cm	24231
ST O2 10-25-15.1 SySTEMA Low loader single axle, braked	1000 kg	251 × 153 cm	24231.002
STP O2 13-25-15.1 SySTEMA Low loader single axle, braked	1300 kg	251 × 153 cm	24232
ST O2 13-25-15.1 SySTEMA Low loader single axle, braked	1300 kg	251 × 153 cm	24232.003
STP O2 15-25-15.1 SySTEMA Low loader single axle, braked	1500 kg	251 × 153 cm	24233
ST O2 15-25-15.1 SySTEMA Low loader single axle, braked	1500 kg	251 × 153 cm	24233.003
STP O2 15-25-15.2 SySTEMA low loader tandem axle, braked	1500 kg	251 × 153 cm	24234
More
ST O2 15-25-15.2 SySTEMA low loader tandem axle, braked	1500 kg	251 × 153 cm	24234.001
STP O2 27-25-15.2 SySTEMA low loader tandem axle, braked	2700 kg	251 × 153 cm	24235
ST O2 27-25-15.2 SySTEMA low loader tandem axle, braked	2700 kg	251 × 153 cm	24235.001
STL 1500 O2 15-25-15.1 + high frame with gray cover and 150 cm frame	1500 kg	251 × 153 cm	TL03504
STL 1500 O2 15-25-15.1	1500 kg	251 × 153 cm	24112.001
ALU STL 1500 O2 15-25-15.1 with gray cover and 150 cm frame	1500 kg	251 × 153 cm	TL02702

Lattice extension for low loaders

art.nr. ZT00547
Folding front wall, for SySTEMA low loader
for internal box dimensions: 301 × 128 cm
for external box dimension: 307 × 134 cm
Article dimensions: 66 cm (Height)
Weight: 103 kg

Suitable trailers

€956.80

SySTEMA	Total weight	Platform dimensions	art.nr.
STP O2 10-30-13.1 SySTEMA Low loader single axle, braked	1000 kg	301 × 128 cm	24240
ST O2 10-30-13.1 SySTEMA Low loader single axle, braked	1000 kg	301 × 128 cm	24240.001
STP O2 13-30-13.1 SySTEMA Low loader single axle, braked	1300 kg	301 × 128 cm	24241
ST O2 13-30-13.1 SySTEMA Low loader single axle, braked	1300 kg	301 × 128 cm	24241.001

Lattice extension

art.nr. ZT00548
Folding front wall, for SySTEMA low loader
for internal box dimensions: 301 × 153 cm
for external box dimension: 307 × 159 cm
Article dimensions: 66 cm (Height)
Weight: 107 kg

Suitable trailers

€971.90

Box trailers
SySTEMA	Total weight	Platform dimensions	art.nr.
ST O2 10-30-15.1 SySTEMA Low loader single axle, braked	1000 kg	301 × 153 cm	24246.001
STP O2 10-30-15.1 SySTEMA Low loader single axle, braked	1000 kg	301 × 153 cm	24246
STP O2 13-30-15.1 SySTEMA Low loader single axle, braked	1300 kg	301 × 153 cm	24247
ST O2 13-30-15.1 SySTEMA Low loader single axle, braked	1300 kg	301 × 153 cm	24247.001
ST O2 15-30-15.1 SySTEMA Low loader single axle, braked	1500 kg	301 × 153 cm	24245.001
ST O2 15-30-15.2 SySTEMA low loader tandem axle, braked	1500 kg	301 × 153 cm	24248.001
STP O2 15-30-15.1 SySTEMA Low loader single axle, braked	1500 kg	301 × 153 cm	24245
STP O2 15-30-15.2 SySTEMA low loader tandem axle, braked	1500 kg	301 × 153 cm	24248
STP O2 20-30-15.2 SySTEMA low loader tandem axle, braked	2000 kg	301 × 153 cm	24249
More
ST O2 20-30-15.2 SySTEMA low loader tandem axle, braked	2000 kg	301 × 153 cm	24249.003
STP O2 27-30-15.2 SySTEMA low loader tandem axle, braked	2700 kg	301 × 153 cm	24250
ST O2 27-30-15.2 SySTEMA low loader tandem axle, braked	2700 kg	301 × 153 cm	24250.001
STL 2000 O2 20-30-15.2	2000 kg	301 × 153 cm	24113.002
STL 2000 O2 20-30-15.2 with gray cover and 150 cm frame	2000 kg	301 × 153 cm	TL03506
ALU STL 2000 O2 20-30-15.2	2000 kg	301 × 153 cm	24113.030

Lattice extension

art.nr. ZT00549
Folding front wall, for SySTEMA low loader
for internal box dimensions: 301 × 183 cm
for external box dimension: 307 × 189 cm
Article dimensions: 66 cm (Height)
Weight: 112 kg

Suitable trailers

€1,063.80

SySTEMA	Total weight	Platform dimensions	art.nr.
ST O2 15-30-18.1 SySTEMA Low loader single axle, braked	1500 kg	301 × 183 cm	24278.001
STP O2 15-30-18.1 SySTEMA Low loader single axle, braked	1500 kg	301 × 183 cm	24278
ST O2 20-30-18.2 SySTEMA low loader tandem axle, braked	2000 kg	301 × 183 cm	24279.001
STP O2 20-30-18.2 SySTEMA low loader tandem axle, braked	2000 kg	301 × 183 cm	24279
ST O2 27-30-18.2 SySTEMA low loader tandem axle, braked	2700 kg	301 × 183 cm	24280.001
STP O2 27-30-18.2 SySTEMA low loader tandem axle, braked	2700 kg	301 × 183 cm	24280

Replacement and attachment parts

Plastic hooks for cover mounting with an aluminium panelling

€25.00

Subject to errors and changes! • plus shipping costs, delivery is done with DPD / Spedition Emons / more informations »

Lattice extension / leaf grate for zinc side wall (low loader)

Downloads:

available Article / Articles

Similiar Products

Replacement and attachment parts

Plastic hooks for cover mounting with an aluminium panelling

Shopping cart

Superstructures

Configure trailer

SySTEMA

Flatbed trailers

Lowerable trailers

Box trailers

Multi-functional trailers

Dump trailer

Show all models

Motorcycle transporter

Vehicle transporter

Construction machinery transporters

Cargo trailers

Trailers with lid

Special trailers

Subscribe to the STEMA newsletter.

Subscribe to the STEMA newsletter.

Subscribe to the STEMA newsletter.

Subscribe to the STEMA newsletter.

Accessories according to STEMA models

All around the wheel

Brake system and coupling

Lighting and electronics

Load securing

Replacement and attachment parts

Superstructures

Current offers

Lattice extension / leaf grate for zinc side wall (low loader)

Downloads:

available Article / Articles

Similiar Products

Replacement and attachment parts

Plastic hooks for cover mounting with an aluminium panelling

Shopping cart

Superstructures
