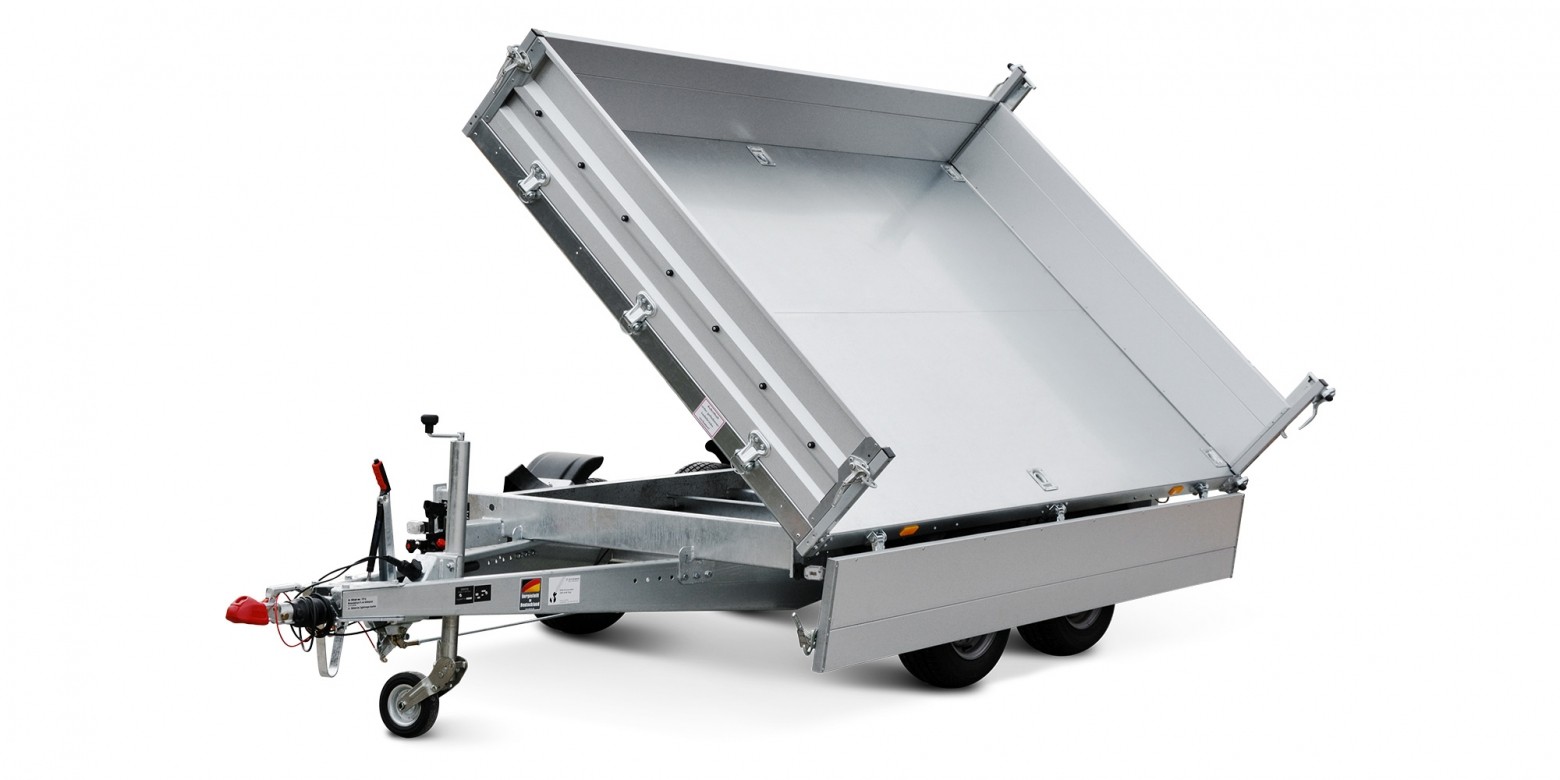

TRIUS 3-sided dump trailer / 3-sided dump trailers

SHDK O2 27-30-18.2

Zinc side wall, hand pump

"Once a three-way dump trailer from STEMA, always one from STEMA." These are the opinions from customers who have decided in favour of a TRIUS. Extremely robust in all load-bearing and working components, it withstands real professional loads. The TRIUS is available in various panelling materials and superstructures depending on customer requirements.

Extremely stable and secure frame.

The TRIUS’s base frame is welded and hot-dip galvanised. The many extra cross and longitudinal beams ensure optimal load distribution.

Hard chrome-plated above and beyond.

The 3-step telescopic cylinder is hard chrome-plated and especially long-lasting.

Securely stored.

The access ramps (optional) are cleverly stored in a lockable compartment behind the license plate holder.

Securely arranged.

The support legs ensure the trailer’s secure position. The service support is for the secure position of the set-up tilting bridge.

All around loading and unloading.

All side walls are foldable and removable.

Folding & Swinging

The rear wall is foldable and swingable and has stable angle lever fasteners.

Simply take the excavator along.

The access ramps (optional) are cleverly stored in a compartment behind the license plate holder. Eight Dekra-tested heavy-duty pull rings are retractable in the floor and directly connected with the stable subframe construction.

Optional for cars & trucks

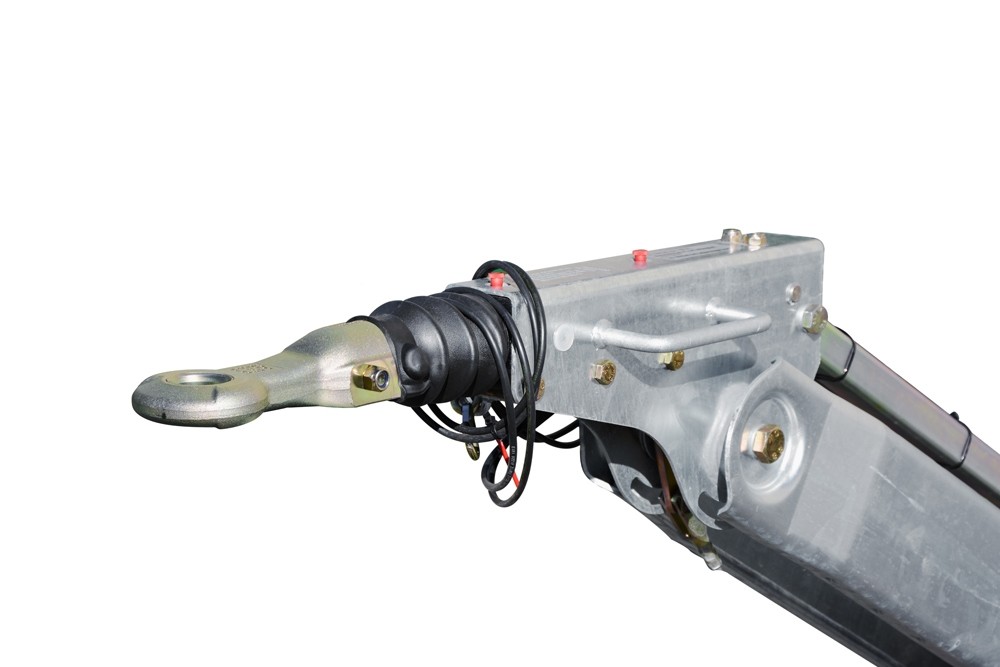

STEMA V-drawbar or height-adjustable central tube with ball head coupling or towing eye - everything is possible.

Take what you want.

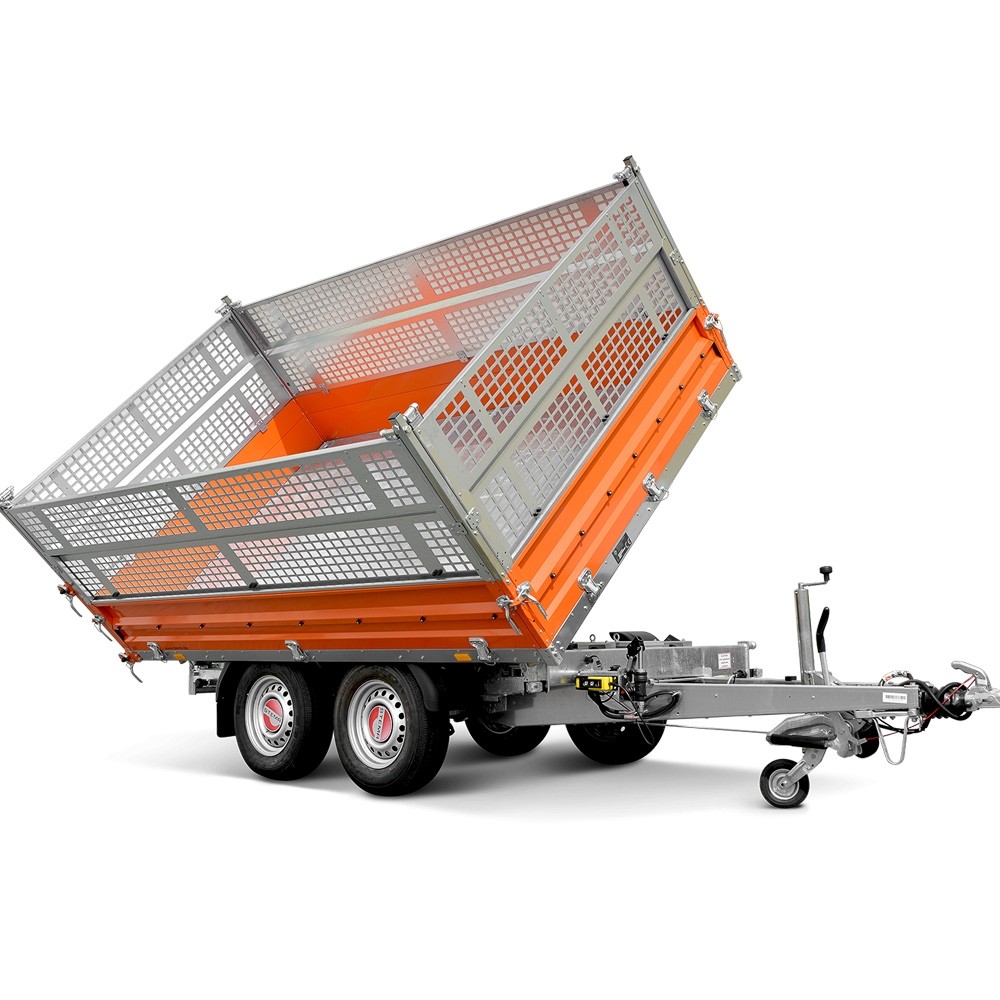

Many superstructures make it possible, for example lattice extension, flat covers, high covers, ladder rack etc.

Tilting via app.

If your trailer is equipped with a hydraulic electric pump, the loading bridge can also be operated via Bluetooth ausgestattet, or with the classic remote control.

Perfectly protected against falling rocks.

The pump aggregate is protected in the aluminium box from water spray and rock damage.

Color, 2mm steel or aluminium?

Select your individual side walls! STEMA’s building block principle makes it possible.

Bordwand, Reling und Co.
raised end stanchions for greater headroom when unloading with long-lasting and high quality corrosion protection Side walls of steel sheet with Galvalume (aluminium-zinc panelling), double-leaf with robust angle lever fasteners Swingable rear wall all around folding and detachable sides optionally with colorful powder coating (surcharge depending on RAL) 35 cm high with robust wide band hinges
Chassis and frame
optimum road handling with test track-proofed chassis with STEMA safety V-drawbar Ball head coupling with safety display Fully hot-dip galvanized screw-welded chassis Plastic scratch protection on ball head coupling welded and in immersion bath hot-dip galvanised frame of sturdy steel sheet
Einhängemöglichkeiten für Planen und Netze
installed mounting hooks for attaching covers and nets
Hydraulic (tilting and lowering functions)
Hard chrome plated 3-step hydraulic cylinder with hand pump and relief valve Additional locking safety for tilting bridge
Lashing and securing options
3 lashing hooks each on the cantilevers of the crossbeams under the loading surface 3 ring nuts each on the long sides under the loading surface 8 retractable heavy lashing eyelets for heavy loads, each with 800 daN (tested according to DIN 75410-1) on the loading surface, integrated into the frame
Lighting equipment
modern multi-functional lighting with backup lights With rear fog lamp 13-pole socket, EC equipment
Loading area and floor
Continuous loading surface of sturdy and galvanised steel sheet 3 mm thick with maintenance stand
Wheels and axles
robust rubber spring axle with individual wheel suspension maintenance-free compact wheel bearing shock-resistant plastic fenders Wheel chock with holder

Dimensions
Platform dimensions	301 × 183 cm
Outer dimensions	450 × 201 × 129 cm
Drop side height	35 cm
Loading height	76 cm
Load and weight
Payload	1875 kg
Total weight	2700 kg
Further technical data
Article number	25900.010
Rim size	13"
Side wall material	Zinc
Dump trailer type	3-sided dump trailer / 3-sided dump trailers
Low / high loader	High loader / High loaders
Additional features	Braked Support wheel
